• DC/DC Converter con ampio range di ingresso:
– 2:1 per modelli SD-15/25/50/100/150/200/350 SD-500H ed SD-1000H.
– 4:1 per modelli SD-500L ed SD-1000L.
• Isolamento 1500VAC (2000VAC per SD-500 ed SD-1000) tra in gresso ed uscita
• Filtro EMI integrato
• Raffreddamento a libera convezione d’aria per modelli SD-15/25/50/100/150/200
• Raffreddamento forzato tramite ventola per modelli SD-350/500 e 1000
• Protezioni: Cortocircuito / Sovraccarico / Sovra tensione
• Protezione per Sovra Temperatura per SD-200, SD-350, SD-500 ed SD-1000
• Segnalazione DC OK per modelli SD-500 ed SD-1000
• Funzione di “Controllo Remoto ON/OFF” (SD-500, SD-1000)
• Funzione di “remote sense” per il recupero della caduta di tensione su cablaggio (SD-500, SD-1000)
• Uscita ausiliaria 12VDC/0.25A (SD-1000)
• LED per indicazione alimentatore acceso
| Codice | Sigla | Caratteristiche | Modello MEAN WELL |
| ET4770 | ET/9-18/5/3A/SD15/A | In 9,2-18Vdc Out 3V/5A |
SD-15A-5
|
| ET4771 | ET/9-18/12/1.25A/SD15/A | In 9,2-18Vdc Out 12V/1,25A |
SD-15A-12
|
| ET4772 | ET/9-18/24/0.625A/SD15/A | In 9,2-18Vdc Out 24V/0,625A |
SD-15A-24
|
| ET4773 | ET/19-36/5/3A/SD15/B | In 19-36Vdc Out 5V/3A |
SD-15B-5
|
| ET4774 | ET/19-36/12/1.25A/SD15/B | In 19-36Vdc Out 12V/1,25A |
SD-15B-12
|
| ET4775 | ET/19-36/24/0.625A/SD15/B | In 19-36Vdc Out 24V/0,625A |
SD-15B-24
|
| ET4776 | ET/36-72/5/3A/SD15/C | In 36-72Vdc Out 5V/3A |
SD-15C-5
|
| ET4777 | ET/36-72/12/1.25A/SD15/C | In 36-72Vdc Out 12V/1,25A |
SD-15C-12
|
| ET4778 | ET/36-72/24/0.625A/SD15/C | In 36-72Vdc Out 24V/0,625A |
SD-15C-24
|
| ET4180 | ET/9-18/5/5A/SD25/A | In 9,2-18Vdc Out 5V/5A |
SD-25A-5
|
| ET4181 | ET/9-18/12/2A/SD25/A | In 9,2-18Vdc Out 12V/2,1A |
SD-25A-12
|
| ET4182 | ET/9-18/24/1A/SD25/A | In 9,2-18Vdc Out 24V/1,1A |
SD-25A-24
|
| ET4183 | ET/19-36/5/5A/SD25/B | In 19-36Vdc Out 5V/5A |
SD-25B-5
|
| ET4184 | ET/19-36/12/2A/SD25/B | In 19-36Vdc Out 12V/2,1A |
SD-25B-12
|
| ET4185 | ET/19-36/24/1A/SD25/B | In 19-36Vdc Out 24V/1,1A |
SD-25B-24
|
| ET4186 | ET/36-72/5/5A/SD25/C | In 36-72Vdc Out 5V/5A |
SD-25C-5
|
| ET4187 | ET/36-72/12/2A/SD25/C | In 36-72Vdc Out 12V/2,1A |
SD-25C-12
|
| ET4188 | ET/36-72/24/1A/SD25/C | In 36-72Vdc Out 24V/1,1A |
SD-25C-24
|
| ET4192 | ET/9-18/5/10A/SD50/A | In 9,2-18Vdc Out 5V/10A |
SD-50A-5
|
| ET4193 | ET/9-18/12/4A/SD50/A | In 9,2-18Vdc Out 12V/4,2A |
SD-50A-12
|
| ET4194 | ET/9-18/24/2A/SD50/A | In 9,2-18Vdc Out 24V/2,1A |
SD-50A-24
|
| ET4195 | ET/19-36/5/10A/SD50/B | In 19-36Vdc Out 5V/10A |
SD-50B-5
|
| ET4196 | ET/19-36/12/4A/SD50/B | In 19-36Vdc Out 12V/4,2A |
SD-50B-12
|
| ET4197 | ET/19-36/24/2A/SD50/B | In 19-36Vdc Out 24V/2,1A |
SD-50B-24
|
| ET4198 | ET/36-72/5/10A/SD50/C | In 36-72Vdc Out 5V/10A |
SD-50C-5
|
| ET4199 | ET/36-72/12/4A/SD50/C | In 36-72Vdc Out 12V/4,2A |
SD-50C-12
|
| ET4203 | ET/36-72/24/2A/SD50/C | In 36-72Vdc Out 24V/2,1A |
SD-50C-24
|
| ET4207 | ET/19-36/5/20A/SD100/B | In 19-36Vdc Out 5V/20A |
SD-100B-5
|
| ET4208 | ET/19-36/12/8A/SD100/B | In 19-36Vdc Out 12V/8,5A |
SD-100B-12
|
| ET4209 | ET/19-36/24/4A/SD100/B | In 19-36Vdc Out 24V/4,2A |
SD-100B-24
|
| ET4210 | ET/36-72/5/20A/SD100/C | In 36-72Vdc Out 5V/20A |
SD-100C-5
|
| ET4211 | ET/36-72/12/8A/SD100/C | In 36-72Vdc Out 12V/8,5A |
SD-100C-12
|
| ET4212 | ET/36-72/24/4A/SD100/C | In 36-72Vdc Out 24V/4,2A |
SD-100C-24
|
| ET4213 | ET/72-144/5/20A/SD100/D | In 72-144Vdc Out 5V/20A |
SD-100D-5
|
| ET4214 | ET/72-144/12/8A/SD100/D | In 72-144Vdc Out 12V/8,5A |
SD-100D-12
|
| ET4215 | ET/72-144/24/4A/SD100/D | In 72-144Vdc Out 24V/4,2A |
SD-100D-24
|

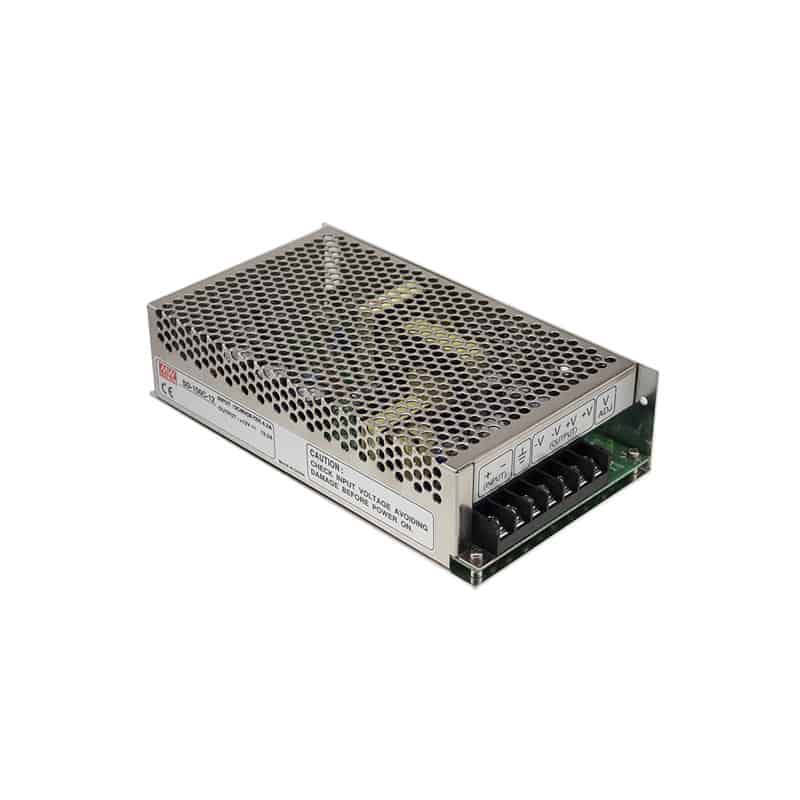

| ET4218 | ET/19-36/12/12A/SD150/B | In 19-36Vdc Out 12V/12,5A |
SD-150B-12
|
| ET4219 | ET/19-36/24/6A/SD150/B | In 19-36Vdc Out 24V/6,3A |
SD-150B-24
|
| ET4220 | ET/36-72/12/12A/SD150/C | In 36-72Vdc Out 12V/12,5A |
SD-150C-12
|
| ET4221 | ET/36-72/24/6A/SD150/C | In 36-72Vdc Out 24V/6,3A |
SD-150C-24
|
| ET4222 | ET/72-144/12/12A/SD150/D | In 72-144Vdc Out 12V/12,5A |
SD-150D-12
|
| ET4223 | ET/72-144/24/6A/SD150/D | In 72-144Vdc Out 24V/6,3A |
SD-150D-24
|
| ET4266 | ET/19-36/5/34A/SD200B | In 19-36Vdc Out 5V/34A |
SD-200B-5
|
| ET4267 | ET/19-36/12/16,7A/SD200B | In 19-36Vdc Out 12V/16,7A |
SD-200B-12
|
| ET4268 | ET/19-36/24/8,4A/SD200B | In 19-36Vdc Out 24V/8,4A |
SD-200B-24
|
| ET4269 | ET/19-36/48/4,2A/SD200B | In 19-36Vdc Out 48V/42A |
SD-200B-48
|
| T.B.D. | ET/36-72/5/34A/SD200C | In 36-72Vdc Out 5V/34A |
SD-200C-5
|
| T.B.D. | ET/36-72/12/16,7A/SD200C | In 36-72Vdc Out 12V/16,7A |
SD-200C-12
|
| T.B.D. | ET/36-72/24/8,4A/SD200C | In 36-72Vdc Out 24V/8,4A |
SD-200C-24
|
| T.B.D. | ET/36-72/48/4,2A/SD200C | In 36-72Vdc Out 48V/42A |
SD-200C-48
|
| ET5026 | ET/72-144/5/34A/SD200D | In 72-144Vdc Out 5V/34A |
SD-200D-5
|
| ET4544 | ET/72-144/12/16,7A/SD200D | In 72-144Vdc Out 12V/16,7A |
SD-200D-12
|
| ET4263 | ET/72-144/24/8,4A/SD200D | In 72-144Vdc Out 24V/8,4A |
SD-200D-24
|
| ET5028 | ET/72-144/48/4,2A/SD200D | In 72-144Vdc Out 48V/42A |
SD-200D-48
|
| T.B.D. | ET/19-36/5/57A/SD350B | In 19-36Vdc Out 5V/57A |
SD-350B-5
|
| ET4314 | ET/19-36/12/27.5A/SD350B | In 19-36Vdc Out 12V/27,5A |
SD-350B-12
|
| ET4317 | ET/19-36/24/14.6A/SD350B | In 19-36Vdc Out 24V/14,6A |
SD-350B-24
|
| T.B.D. | ET/19-36/48/7.3A/SD350B | In 19-36Vdc Out 48V/7,3A |
SD-350B-48
|
| T.B.D. | ET/36-72/5/57A/SD350C | In 36-72Vdc Out 5V/57A |
SD-350D-5
|
| ET4328 | ET/36-72/12/27.5A/SD350C | In 36-72Vdc Out 12V/27,5A |
SD-350D-12
|
| T.B.D. | ET/36-72/24/14.6A/SD350C | In 36-72Vdc Out 24V/14,6A |
SD-350D-24
|
| T.B.D. | ET/36-72/48/7.3A/SD350C | In 36-72Vdc Out 48V/7,3A |
SD-350D-48
|
| T.B.D. | ET/72-144/5/57A/SD350D | In 72-144Vdc Out 5V/57A |
SD-350C-5
|
| T.B.D. | ET/72-144/12/27.5A/SD350D | In 72-144Vdc Out 12V/27,5A |
SD-350C-12
|
| T.B.D. | ET/72-144/24/14.6A/SD350D | In 72-144Vdc Out 24V/14,6A |
SD-350C-24
|
| T.B.D. | ET/72-144/48/7.3A/SD350D | In 72-144Vdc Out 48V/7,3A |
SD-350C-48
|
| ET5410 | ET/19-72/12/40A/SD500L | In 19-72Vdc Out 12V/40A |
SD-500L-12
|
| ET5411 | ET/19-72/24/21A/SD500L | In 19-72Vdc Out 24V/21A |
SD-500L-24
|
| ET5412 | ET/19-72/48/10,5A/SD500L | In 19-72Vdc Out 48V/10,5A |
SD-500L-48
|
| ET5413 | ET/72-144/12/40A/SD500H | In 72-144Vdc Out 12V/40A |
SD-500H-12
|
| ET5414 | ET/72-144/24/21A/SD500H | In 72-144Vdc Out 24V/21A |
SD-500H-24
|
| ET5415 | ET/72-144/48/10,5A/SD500H | In 72-144Vdc Out 48V/10,5A |
SD-500H-48
|
| ET5416 | ET/19-72/12/60A/SD1000L | In 19-72Vdc Out 12V/60A |
SD-1000L-12
|
| ET5417 | ET/19-72/24/40A/SD1000L | In 19-72Vdc Out 24V/40A |
SD-1000L-24
|
| ET5418 | ET/19-72/48/21A/SD1000L | In 19-72Vdc Out 48V/21A |
SD-1000L-48
|
| ET5419 | ET/72-144/12/60A/SD1000H | In 72-144Vdc Out 12V/60A |
SD-1000H-12
|
| ET5420 | ET/72-144/24/40A/SD1000H | In 72-144Vdc Out 24V/40A |
SD-1000H-24
|
| ET5421 | ET/72-144/48/21A/SD1000H | In 72-144Vdc Out 48V/21A |
SD-1000H-48
|
