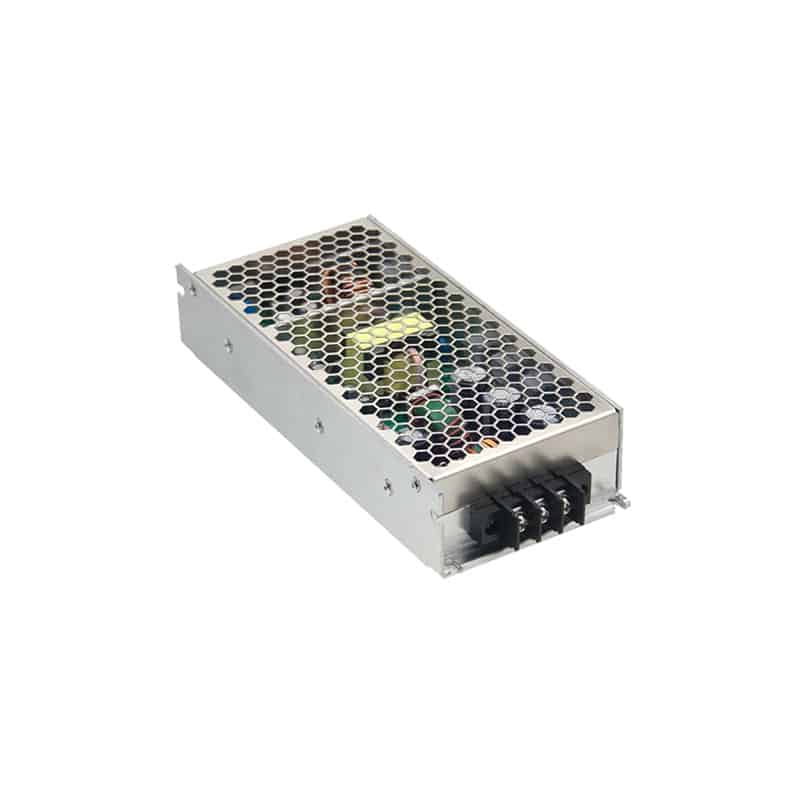

• DC/DC Converter switching dedicati al settore ferroviario ed automotive
• Conformi alla normativa per il settore ferroviario EN50155 ed IEC60571
• Ampio range di ingresso: 2:1
• Isolamento 4000VDC tra in gresso ed uscita
• Protezioni: Cortocircuito / Sovraccarico / Sovra tensione / Inversione polarità ingresso
• Protezione per Sovra Temperatura per RSD-100, RSD-150, RSD-200 ed RSD-300
• Raffreddamento a libera convezione d’aria
• Dotati di circuito per la limitazione a corrente costante
• Equipaggiati con condensatori da 105°C
• Semi-resinati
Sono testati con vibrazioni da 10 a 500Hz, con forza 5G applicata a
cicli di 10min. Ripetuti su ogni asse X, Y, Z.
| Codice EUROTEK | Modello MEAN WELL | Caratteristiche | Dim. LxHxP |
| ETRSD100B5 | RSD-100B-5 | In. 14,4~33,6VDC; Out. 5VDC 20A |
161x68x36
|
| ETRSD100B12 | RSD-100B-12 | In. 14,4~33,6VDC; Out. 12VDC 8,4A |
161x68x36
|
| ETRSD100B24 | RSD-100B-24 | In. 14,4~33,6VDC; Out. 24VDC 4,2A |
161x68x36
|
| ETRSD100C5 | RSD-100C-5 | In. 28,8~67,2VDC; Out. 5VDC 20A |
161x68x36
|
| ETRSD100C12 | RSD-100C-12 | In. 28,8~67,2VDC; Out. 12VDC 8,4A |
161x68x36
|
| ETRSD100C24 | RSD-100C-24 | In. 28,8~67,2VDC; Out. 24VDC 4,2A |
161x68x36
|
| ETRSD100D5 | RSD-100D-5 | In. 57,6~154VDC; Out. 5VDC 20A |
161x68x36
|
| ETRSD100D12 | RSD-100D-12 | In. 57,6~154VDC; Out. 12VDC 8,4A |
161x68x36
|
| ETRSD100D24 | RSD-100D-24 | In. 57,6~154VDC; Out. 24VDC 4,2A |
161x68x36
|
| ETRSD150B5 | RSD-150B-5 | In. 14,4~33,6VDC; Out. 5VDC 30A |
189x77x36
|
| ETRSD150B12 | RSD-150B-12 | In. 14,4~33,6VDC; Out. 12VDC 12,5A |
189x77x36
|
| ETRSD150B24 | RSD-150B-24 | In. 14,4~33,6VDC; Out. 24VDC 6,3A |
189x77x36
|
| ETRSD150C5 | RSD-150C-5 | In. 28,8~67,2VDC; Out. 5VDC 30A |
189x77x36
|
| ETRSD150C12 | RSD-150C-12 | In. 28,8~67,2VDC; Out. 12VDC 12,5A |
189x77x36
|
| ETRSD150C24 | RSD-150C-24 | In. 28,8~67,2VDC; Out. 24VDC 6,3A |
189x77x36
|
| ETRSD150D5 | RSD-150D-5 | In. 57,6~154VDC; Out. 5VDC 30A |
189x77x36
|
| ETRSD150D12 | RSD-150D-12 | In. 57,6~154VDC; Out. 12VDC 12,5A |
189x77x36
|
| ETRSD150D24 | RSD-150D-24 | In. 57,6~154VDC; Out. 24VDC 6,3A |
189x77x36
|
| ETRSD200B12 | RSD-200B-12 | In. 14,4~33,6VDC; Out. 12VDC 16,7A |
191x86x40
|
| ETRSD200B24 | RSD-200B-24 | In. 14,4~33,6VDC; Out. 24VDC 8,4A |
191x86x40
|
| ETRSD200B48 | RSD-200B-48 | In. 14,4~33,6VDC; Out. 48VDC 4,2A |
191x86x40
|
| ETRSD200C12 | RSD-200C-12 | In. 28,8~67,2VDC; Out. 12VDC 16,7A |
191x86x40
|
| ETRSD200C24 | RSD-200C-24 | In. 28,8~67,2VDC; Out. 24VDC 8,4A |
191x86x40
|
| ETRSD200C48 | RSD-200C-48 | In. 28,8~67,2VDC; Out. 48VDC 4,2A |
191x86x40
|
| ETRSD200D12 | RSD-200D-12 | In. 57,6~154VDC; Out. 12VDC 16,7A |
191x86x40
|
| ETRSD200D24 | RSD-200D-24 | In. 57,6~154VDC; Out. 24VDC 8,4A |
191x86x40
|
| ETRSD200D48 | RSD-200D-48 | In. 57,6~154VDC; Out. 48VDC 4,2A |
191x86x40
|
| ETRSD300B5 | RSD-300B-5 | In. 14,4~33,6VDC; Out. 5VDC 42A |
216x97x40
|
| ETRSD300B12 | RSD-300B-12 | In. 14,4~33,6VDC; Out. 12VDC 22,5A |
216x97x40
|
| ETRSD300B24 | RSD-300B-24 | In. 14,4~33,6VDC; Out. 24VDC 11,3A |
216x97x40
|
| ETRSD300B48 | RSD-300B-48 | In. 14,4~33,6VDC; Out. 48VDC 5,7A |
216x97x40
|
| ETRSD300C5 | RSD-300C-5 | In. 28,8~67,2VDC; Out. 5VDC 42A |
216x97x40
|
| ETRSD300C12 | RSD-300C-12 | In. 28,8~67,2VDC; Out. 12VDC 22,5A |
216x97x40
|
| ETRDS300C24 | RDS-300C-24 | In. 28,8~67,2VDC; Out. 24VDC 11,3A |
216x97x40
|
| ETRSD300C48 | RSD-300C-48 | In. 28,8~67,2VDC; Out. 48VDC 5,7A |
216x97x40
|
| ETRSD300D5 | RSD-300D-5 | In. 57,6~154VDC; Out. 5VDC 42A |
216x97x40
|
| ETRSD300D12 | RSD-300D-12 | In. 57,6~154VDC; Out. 12VDC 22,5A |
216x97x40
|
| ETRSD300D24 | RSD-300D-24 | In. 57,6~154VDC; Out. 24VDC 11,3A |
216x97x40
|
| ETRSD300D48 | RSD-300D-48 | In. 57,6~154VDC; Out. 48VDC 5,7A |
216x97x40
|
| ETRSD300E5 | RSD-300E-5 | In. 21,6~50,4VDC; Out. 5VDC 42A |
216x97x40
|
| ETRSD300E12 | RSD-300E-12 | In. 21,6~50,4VDC; Out. 12VDC 22,5A |
216x97x40
|
| ETRSD300E24 | RSD-300E-24 | In. 21,6~50,4VDC; Out. 24VDC 11,3A |
216x97x40
|
| ETRSD300E48 | RSD-300E-48 | In. 21,6~50,4VDC; Out. 48VDC 5,7A |
216x97x40
|
| ETRSD300F5 | RSD-300F-5 | In. 43,2~100,8VDC; Out. 5VDC 42A |
216x97x40
|
| ETRSD300F12 | RSD-300F-12 | In. 43,2~100,8VDC; Out. 12VDC 22,5A |
216x97x40
|
| ETRSD300F24 | RSD-300F-24 | In. 43,2~100,8VDC; Out. 24VDC 11,3A |
216x97x40
|
| ETRSD300F48 | RSD-300F-48 | In. 43,2~100,8VDC; Out. 48VDC 5,7A |
216x97x40
|
