• DC/DC Converter switching da guida DIN TS-35/7.5 O 15
• Contenitori modulari da 1 unità a 3 unità
• Range di ingresso molto ampio: rapporto 4:1
• Isolamento 4000VDC tra ingresso ed uscita
• Protezioni: Cortocircuito / Sovraccarico / Sovra tensione / Inversione polarità ingresso
• Raffreddamento a libera convezione d’aria
• Operatività con temperatura ambiente tra -40°C e +85°C
• Tensione di uscita regolabile del ±10%
| Codice EUROTEK | Modello MEAN WELL | Caratteristiche | Dim. LxHxP |
| ETDDR15G33 | DDR-15G-3.3 | In. 9~36VDC, Out. 3.3VDC 3.5A, Potenza 11.55W |
17.5 x 90 x 54.5 mm
|
| ETDDR15G5 | DDR-15G-5 | In. 9~36VDC, Out. 5VDC 3A, Potenza 15W |
17.5 x 90 x 54.5 mm
|
| ETDDR15G12 | DDR-15G-12 | In. 9~36VDC, Out. 12VDC 1.25A, Potenza 15W |
17.5 x 90 x 54.5 mm
|
| ETDDR15G15 | DDR-15G-15 | In. 9~36VDC, Out. 15VDC 1A, Potenza 15W |
17.5 x 90 x 54.5 mm
|
| ETDDR15G24 | DDR-15G-24 | In. 9~36VDC, Out. 24VDC 0.63A, Potenza 15W |
17.5 x 90 x 54.5 mm
|
| ETDDR15L33 | DDR-15L-3.3 | In. 18~75VDC, Out. 3.3VDC 3.5A, Potenza 11.55W |
17.5 x 90 x 54.5 mm
|
| ETDDR15L5 | DDR-15L-5 | In. 18~75VDC, Out. 5VDC 3A, Potenza 15W |
17.5 x 90 x 54.5 mm
|
| ETDDR15L12 | DDR-15L-12 | In. 18~75VDC, Out. 12VDC 1.25A, Potenza 15W |
17.5 x 90 x 54.5 mm
|
| ETDDR15L15 | DDR-15L-15 | In. 18~75VDC, Out. 15VDC 1A, Potenza 15W |
17.5 x 90 x 54.5 mm
|
| ETDDR15L24 | DDR-15L-24 | In. 18~75VDC, Out. 24VDC 0.63A, Potenza 15W |
17.5 x 90 x 54.5 mm
|
| ETDDR30G5 | DDR-30G-5 | In. 9~36VDC, Out. 5VDC 6A, Potenza 30W |
35 x 90 x 54.5 mm
|
| ETDDR30G12 | DDR-30G-12 | In. 9~36VDC, Out. 12VDC 2.5A, Potenza 30W |
35 x 90 x 54.5 mm
|
| ETDDR30G15 | DDR-30G-15 | In. 9~36VDC, Out. 15VDC 2A, Potenza 30W |
35 x 90 x 54.5 mm
|
| ETDDR30G24 | DDR-30G-24 | In. 9~36VDC, Out. 24VDC 1.25A, Potenza 30W |
35 x 90 x 54.5 mm
|
| ETDDR30L5 | DDR-30L-5 | In. 18~75VDC, Out. 5VDC 6A, Potenza 30W |
35 x 90 x 54.5 mm
|
| ETDDR30L12 | DDR-30L-12 | In. 18~75VDC, Out. 12VDC 2.5A, Potenza 30W |
35 x 90 x 54.5 mm
|
| ETDDR30L15 | DDR-30L-15 | In. 18~75VDC, Out. 15VDC 2A, Potenza 30W |
35 x 90 x 54.5 mm
|
| ETDDR30L24 | DDR-30L-24 | In. 18~75VDC, Out. 24VDC 1.25A, Potenza 30W |
35 x 90 x 54.5 mm
|
| ETDDR60G5 | DDR-60G-5 | In. 9~36VDC, Out. 5VDC 10.8A, Potenza 54W |
52.5 x 90 x 54.5 mm
|
| ETDDR60G12 | DDR-60G-12 | In. 9~36VDC, Out. 12VDC 5A, Potenza 60W |
52.5 x 90 x 54.5 mm
|
| ETDDR60G15 | DDR-60G-15 | In. 9~36VDC, Out. 15VDC 4A, Potenza 60W |
52.5 x 90 x 54.5 mm
|
| ETDDR60G24 | DDR-60G-24 | In. 9~36VDC, Out. 24VDC 2.5A, Potenza 60W |
52.5 x 90 x 54.5 mm
|
| ETDDR60L5 | DDR-60L-5 | In. 18~75VDC, Out. 5VDC 10.8A, Potenza 54W |
52.5 x 90 x 54.5 mm
|
| ETDDR60L12 | DDR-60L-12 | In. 18~75VDC, Out. 12VDC 5A, Potenza 60W |
52.5 x 90 x 54.5 mm
|
| ETDDR60L15 | DDR-60L-15 | In. 18~75VDC, Out. 15VDC 4A, Potenza 60W |
52.5 x 90 x 54.5 mm
|

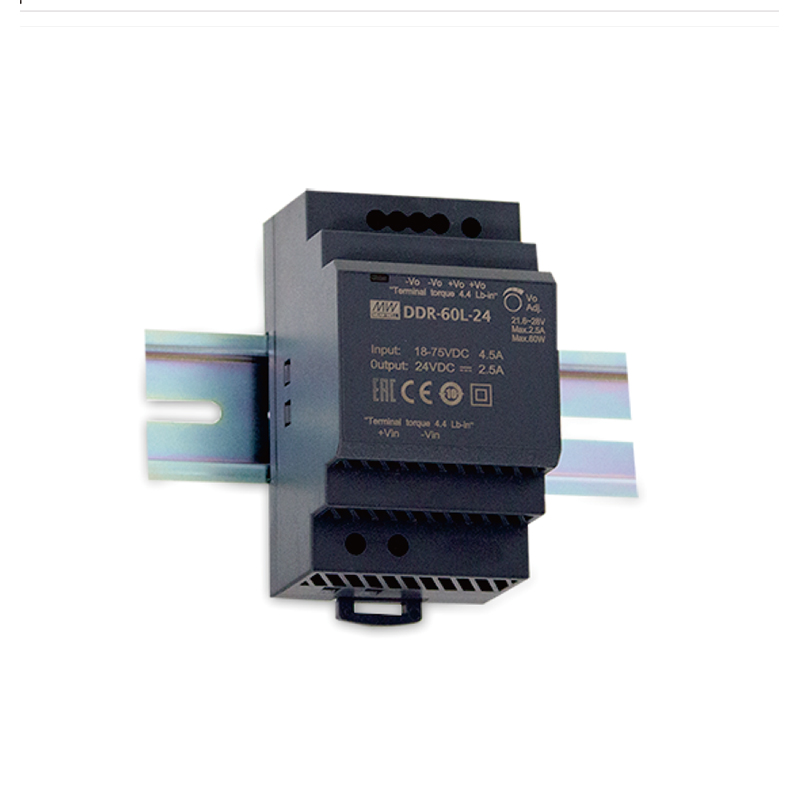

| ETDDR60L24 | DDR-60L-24 | In. 18~75VDC, Out. 24VDC 2.5A, Potenza 60W |
52.5 x 90 x 54.5 mm
|
