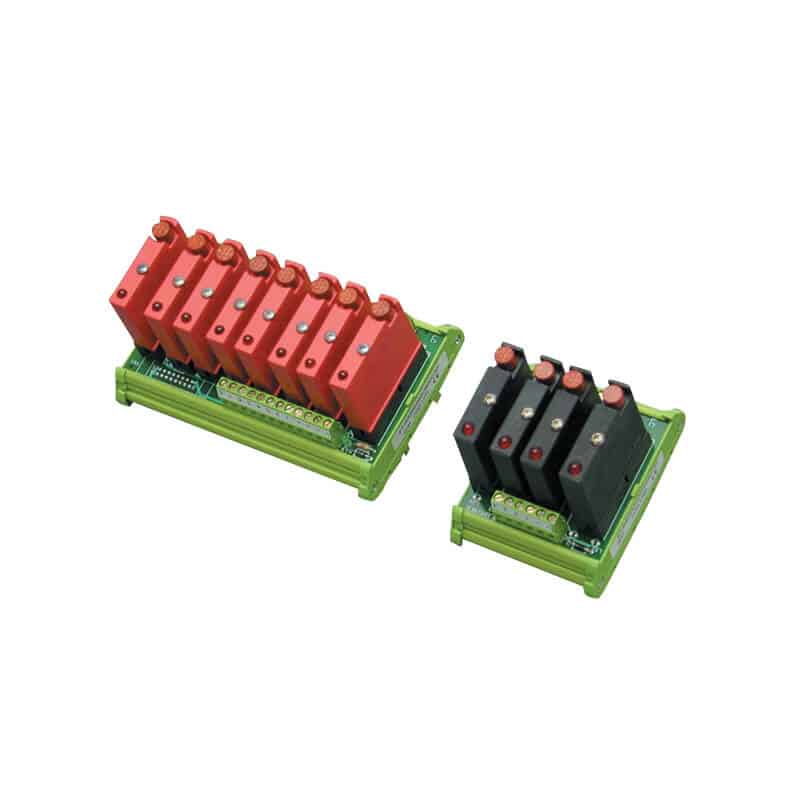

Single solid state relay modules
Family of single solid state relay modules with a direct voltage control signal, available with and without a fuse.
The versions for alternate voltage loads have a double SCR output, a ZERO CROSSING firing system and a protection varistor.
The modules for direct voltage load have a SCR output.
| Code | Part Number | Features | Dim. LxHxP |
| 1000 | ET-MS01/24DC/60DC/3 | Drive signal 24Vdc, loads up to 60Vdc/3A |
13x84x46
|
| 1001 | ET-MS01/24DC/60DC/3/F | Drive signal 24Vdc, loads up to 60Vdc/3A, with fuse |
13x84x62
|
| 1002 | ET-MS01/24DC/240AC/4 | Drive signal 24Vdc, loads up to 240Vac/4A |
13x84x46
|
| 1003 | ET-MS01/24DC/240AC/3/F | Drive signal 24Vdc, loads up to 240Vac/3A, with fuse |
13x84x62
|
