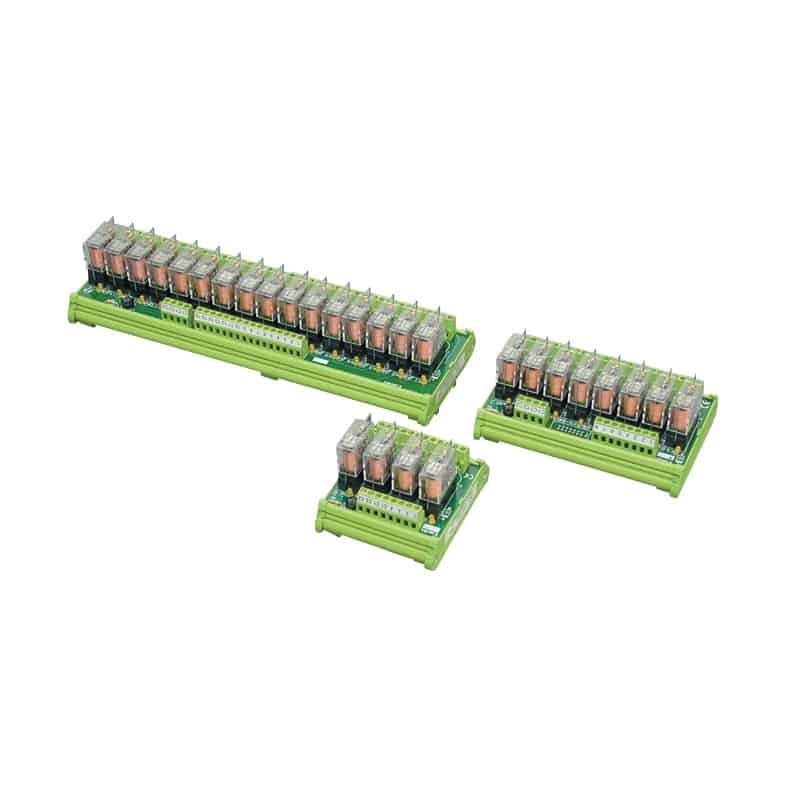

4-8-16 relay modules available with or without fuse holders
Contact capacity 10° 250V
Negative common 24Vdc drive signal
Green Led for power ON indication
Input and output connections: screw terminal for leads max diam. 2,5 mm² (plugable version optn.)
Diode for supply reverse polarity protection
Clamping diode on excitation colis
Dual layer PCB (UR approval)
UL 94-V0 self-extinguishing case
Execution for DIN EN50022 and EN50035 rail mounting
| Code | Part Number | Features | Size LxHxD |
| 4 relay – 24 Vdc |
79x92x74
|
||
| 0300 | ET-MRZ04/48DC/SC/N | 4 relay – 48 Vdc |
79x92x74
|
| 0230 | ET-MRZ08/24DC/SC/N | 8 relay – 24 Vdc |
137x92x74
|
| 0320 | ET-MRZ08/48DC/SC/N | 8 relay – 48 Vdc |
137x92x74
|
| 0250 | ET-MRZ16/24DC/SC/N | 16 relay – 24 Vdc |
272x92x74
|
| 0340 | ET-MRZ16/48DC/SC/N | 16 relay – 48 Vdc |
272x92x74
|
| 0213 | ET-MRZ04/24DC/SC/F/N | 4 relay – 24 Vdc – fuse |
79x92x74
|
| 0303 | ET-MRZ04/48DC/SC/F/N | 4 relay – 48 Vdc – fuse |
79x92x74
|
| 0233 | ET-MRZ08/24DC/SC/F/N | 8 relay – 24 Vdc – fuse |
137x92x74
|
| 0323 | ET-MRZ08/48DC/SC/F/N | 8 relay – 48 Vdc – fuse |
137x92x74
|
| 0253 | ET-MRZ16/24DC/SC/F/N | 16 relay – 24 Vdc – fuse |
272x92x74
|
| 0343 | ET-MRZ16/48DC/SC/F/N | 16 relay – 48 Vdc – fuse |
272x92x74
|
