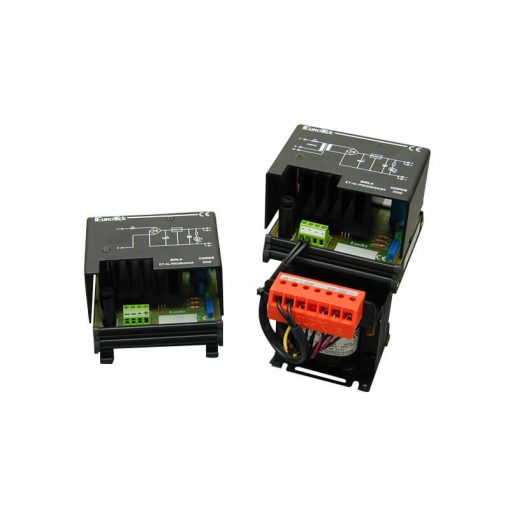

Singlephase linear stabilized power supply
Series of linear stabilised power suppliers, with technical features suitable for different market requirements thanks to the wide output voltage range regulation. The line includes single-phase versions ( 230 / 400 Vac).
NOTE: the nominal current value shall be referred to continuos loads.
| Code | Part Number | Features | Dim. LxHxP |
| ET3259 | ET-AL/RS/28/24/2A | In 24~28Vac Out 24V/2A |
100x80x70
|
| ET3848 | ET-AL/RS/28/24/0.7A/LP | In 24~28Vac Out 24V/0.7A |
47x90x78
|
| ET3264 | ET-AL/RS/28/24/6A | In 24~28Vac Out 24V/6A |
150x130x120
|
| ET3265 | ET-AL/RS/28/24/12A | In 24~28Vac Out 24V/12A |
150x130x120
|
| ET14600 | ET-AL/RS/28/24/12A/ATH | In 24~28Vac Out 24V/12A, con ventola |
162x125x110
|
| ET3269 | ET-AL/RS/230/24/2A | In 230-400Vac Out 24V/2A |
100x130x150
|
| ET3273 | ET-AL/RS/230/24/6A | In 230-400Vac Out 24V/6A |
150x160x200
|
| ET3274 | ET-AL/RS/230/24/12A | In 230-400Vac Out 24V/12A |
150x160x200
|
| ET14601 | ET-AL/RS/230/24/12A/ATH | In 230~400Vac Out 24V/12A, con ventola |
– – –
|
| ET4310 | ET/DC-DC/18-36/10/0.3A/GB | In 18-36Vdc Out 10V/0.3A |
23x90x110
|
